Getting Started with DNA Dynamo
1) Load a Genbank record from NCBI
a) Use the ‘Download’ menus -> Retrieve a Genbank Accession Number’ (or Use ‘View’ -> ‘Show Info Panel‘ as shown in the graphic) then enter the
accession number U52953 (which is a genbank record for HIV-1 92BR025 from Brazil, complete genome) . You can also copy a genbank record from the
web, and paste it into the DNA window.
b) The DNA sequence for Genbank accession U52953 is placed in the sequence window - and a pop up window asks you which
features you would like to import from the features defined in the Genbank record - for now, select the CDS (coding sequence)
features by clicking the check box to the right of the CDS option - and press the 'Import Selected Features' button. Note that
different combinations of features can be imported later by selecting menu options 'Files'->'Import'->'Import/Re-Import DNA and
Features from Genbank Text in Notes'.
2) Examining the sequence you have imported.
a) Press the 'Notes' button on the main panel - you will see the text of the Genbank record - you may enter your
own notes for any sequence- and even paste image data from the 'System Clipboard' into the notes section of
every sequence window you use - image data can sometimes be useful for storing Vector Illustrations for
commercial vectors. Press the sequence button again to return to the DNA sequence.
It may be useful at this point to save this DNA Dynamo sequence. Select 'Save As' from the File menu, and enter
a name (eg hivseq).
b) press the ‘All’ button to see a table of restriction sites, and the ‘sites’ button to see a map of restriction sites.
You can click enzymes in the table to add them to the map. Click the ‘expand’ tab in the map to open the map in
a separate window you can also set a preference for this to always happen). Press the ‘Sequence’ button to
return to the DNA sequence.
c) Press the 'Features' button to display the imported CDS features. The location of the various HIV-1 CDSs -
such as gag, pol, env, rev and tat are illustrated. Note that the rev and tat CDSs are formed by splicing and that
the exon/intron structure is illustrated. It is easy to add your own annotations to the DNA sequence, simply select
the sequence to be annotated and press the 'Annotate' button. Features may also be added from the 'BLAST'
results viewer. In addition to the graphic map, features can be drawn directly over the DNA sequence by pressing
the "Draw Annotations' button. You can adjust the layout of annotations (text size, spacing etc using the menu
options 'Sequence'->'Adjust Display Settings'. Annotations may also be displayed on multiple alignments of
DNA/Protein significantly enhancing the readability of such displays. Annotated sequences and alignments can
be printed to pdf, or saved as as an eps file, allowing import into dedicated graphics programs such as adobe
illustrator, for further adjustment.
d) Place the mouse pointer over the 'env' CDS and click the mouse button once. A pop up menu presents several
options - select 'Set as ORF' (ORF = Open Reading Frame) - note that a red forward arrow is placed on the DNA
sequence before base 5583 and a black reverse arrow is placed on the DNA sequence after base 8153 -
representing the start and stop translation points for the env gene.
e) Press the 'MODE' button positioned at the top left of the DNA sequence to switch to 'Translated Mode' - scroll to
base 5583 and you will see the protein translation underneath the set open reading frame. ORFs can also be set by
clicking on individual open reading frames in the 'ORF Map'
f) You can press the ‘number’ check-box on the view control to number the DNA and protein residues.
3) Editing and Saving Oligos in the oligo database.
DNADynamo can design cloning oligos for you (eg to add restriction sites, or for seamless gibson cloning and
infusion cloning) - but it is also worth learning first how to create oligos manually
a) with the mouse select the first 19 bp of the env ORF (ATGAGAGTGGAGGGGATAC) - and press the 'Oligo'
button on the main panel - the oligo editor is opened
b) change the type of the oligo to PCR by clicking the radio button next to the PCR option.
c) place the cursor at the start of the oligo sequence and type in GGATCC to place a BamH1 site at the 5' end of the
oligo - click the 'MODE' button and note that the translation start point is remembered - this is useful when designing
oligos against an internal section of a coding sequence - also note that you can select an amino acid with the mouse
and type in a new amino acid - you are presented with codon options for the new amino acid - useful for designing
mutagenesis oligos. Note that you might want to add additional 5’ bases to aid digestion.
d) enter a name for the oligo in the text box to the right of the 'Oligo Name' text (eg env 5' PCR with BamH1) and then
select 'Save Oligo in Oligo Box' from the Oligo Editors file menu.
e) look at the features map again - you should see that a red oligo mark has appeared at the 5' end of the env CDS.
Place the mouse pointer over the red oligo mark - click the mouse button and select 'PCR Oligo Forward' - the oligo
will be drawn above its target sequence in the DNA sequence display and is set to be used as the forward oligo in a
virtual PCR. Note that any DNA Dynamo window containing the target sequence for this new oligo will dislay an oligo
hit in its features map, not just the DNA sequence window you created the oligo in.
f) create a second oligo against the 3' 18 nucleotides of env (GAAGCAGCTTTGCAATAA) as above except this time enter
a XhoI site (CTCGAG) at the 3' end of the oligo and switch the direction of the oligo from sense to anti-sense by clicking
the 'anti-sense' radio button with the mouse. Note the effect that clicking the anti-sense button has the the 'Required Oligo
5'->3'' display at the bottom of the window, which is the sequence of your required oligo in the 5' to 3' direction. Note that
you can press the 'Copy to Clipboard' button and subsequently paste tha oligo sequence into another application such as
an oligo order form on a web page etc). You might want to add additional bases before the xho site to aid digestion.
g) The new 3' oligo appears on the features map at the 3' end of the env gene. Place the mouse pointer over the red oligo
mark - click the mouse button and select 'PCR Oligo Reverse - the oligo will be drawn above its target sequence in the
DNA sequence display and is set to be used as the reverse oligo in a virtual PCR.
h) You could also design these oligos using the ‘Add Restriction Sites’ mode in the ‘Construct Maker’
4) Sub-cloning - you may join together insert dna sequences to vector sequences to help
plan your sub-cloning experiments and draw vector maps.
a) select 'Subclone into Vector' from the 'Vector' menu on the main window displaying the HIV sequence - a 'Construct Maker' window opens.
b) select pBlueScriptSK+ from the sample vectors on the left hand side menu
c) press the 'Use PCR Product' button so that the top 'insert map' will represent the theoretical PCR product from the oligos you
entered for the env CDS - you should see a BamH1 site indicated on the 5' end of the insert and a XhoI site indicated at the 3' end
of the insert. (note - some users find it easier to simply edit the DNA sequence by adding the sites manually, rather than selecting
oligo's like this)
d) with the mouse - press and drag the upper 5' BamH1 site of the insert to the lower BamH1 site of pBlueScript. a red line will join
the two sites. Similarly join the XhoI site of the insert to the XhoI site in the vector
e) finally press the 'Create Clone' button - a new window is opened and the sequence represents the env CDS, PCRd with your
two oligo and subcloned into the BamH1 and XhoI sites in pBlueScript.
f) press the 'features' button on the new constuct window to view the construct features. Note the pBlueScript sequencing oligos
that appear on the map.

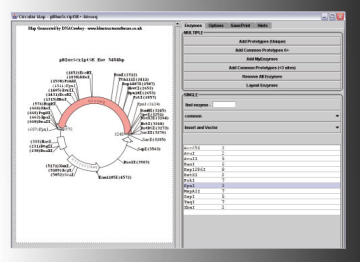

g) Select 'Circular Map' from the 'Vector' menu - the map title can be edited and moved with the mouse. - press the
'Add prototypes (unique)' followed by the 'Layout Enzymes' button to illustrate restriction sites. Note that enzyme
names can be moved with the mouse. The size, position, rotation and colour of map features can be edited from the
control panel.
-----------------------------------
DNA Dynamo contains many more functions. See the help pages for more advice, or feel free to use the 'Ask a
Question' option in the File menu, or email support@bluetractorsoftware.co.uk directly to ask any questions you may
have about DNA Dynamo functionality. We will get back to you as soon as we can.
